Engineering Excellence

Heavy-Duty Rigid FR-4 PCB Backer Membrane Switches

When flexible PET or Polyimide (FPC) circuits cannot meet your structural, thermal, or dense component assembly requirements, a PCB Backer Membrane Switch is the definitive solution. Manufactured by Dongguan Ravo Electronics Co., Ltd. in our 12,000 m² facility, these switches combine a rigid FR-4 printed circuit board with customized graphic overlays and stainless steel metal domes.

This hybrid construction enables direct soldering of surface-mount devices (SMD LEDs, microcontrollers, resistors, and headers) onto the back substrate, turning the switch panel into an integrated control module for medical equipment, motor inverters, and heavy automation machinery.

High-Density Wiring Double-sided or multi-layer FR-4 substrates with fine-pitch traces.
Direct Component Soldering Support SMT components, LCD display headers, and robust connectors.
Structural Rigidity 0.4 mm to 3.2 mm board thicknesses eliminate flexing and protect internal domes.
IP65 / IP67 Environmental Sealing Full perimeter 3M adhesives resist dust, chemicals, and liquid ingress.
PCB Membrane Switch Backer Assembly engineered by Dongguan Ravo Electronics Co., Ltd.

Integrated Rigid Control Modules

Custom engineered to your exact CAD drawing. Prototyping available from 10 pieces with a ≤2-hour DFM engineering response time.

Catalog Showcase

Featured PCB Membrane Switch & Control Panel Builds

Explore our export-grade PCB backed keypads, microcomputer controller boards, and sealed graphic overlays designed for global OEMs.

Custom Small Membrane Switch with PCB Backer

Custom Small Membrane Switch with PCB Backer

  • Integrated Rigid-Flex Substrate
  • Surface Mount LED Backlighting
  • 3M High-Tack Mounting Adhesive
$1.60 - $1.80 MOQ: 100 pcs

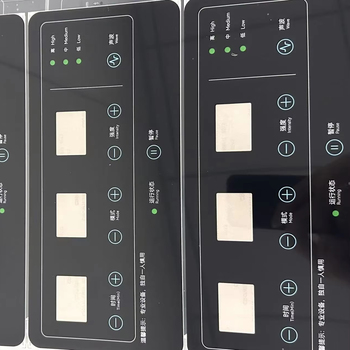

Microcomputer Controller Main Board PCB

Microcomputer Controller 220V PCB Module

  • Applicable for Dryer / Washer Control
  • Multi-layer Circuit & SMT Assembly
  • Full Continuity & Load Tested
$120.27 MOQ: 2 pcs
Polycarbonate PCB Control Panel Overlay

PC / PET Overlay for PCB Control Board

  • Screen Printed Custom Colors
  • Transparent Display Windows
  • 3M 467MP Adhesive Layer
$0.35 - $0.50 MOQ: 500 pcs

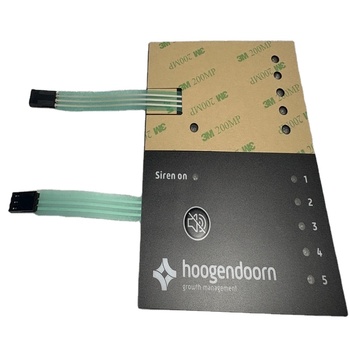

Durable PET Material PCB Keypad for Remotes

Embossed One-Key Keypad for Remotes

  • Durable PET Front Foil
  • Tactile Snap Action Button
  • 3M 200MP Adhesive Backing
$0.60 - $1.00 MOQ: 10 pcs

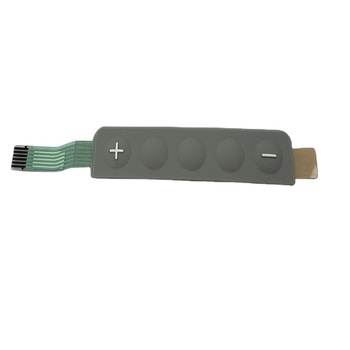

Silicone Rubber Push Button Keypad with PCB Backer

Silicone Push-Button PCB Switch Module

  • Compression-molded Silicone Keys
  • Conductive Carbon Pill Contacts
  • Glove-Friendly Actuation Force
$0.80 - $1.20 MOQ: 10 pcs

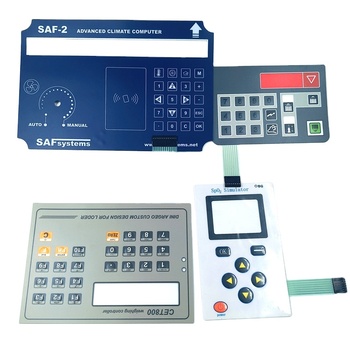

IP65 Waterproof Tactile Membrane Keypad

IP65 Sealed Tactile Keypad with LCD Window

  • Clear Window for LCD/LED Display
  • Sealed Perimeter Water Barrier
  • Metal Dome Tactile Feedback
$0.50 - $0.80 MOQ: 10 pcs

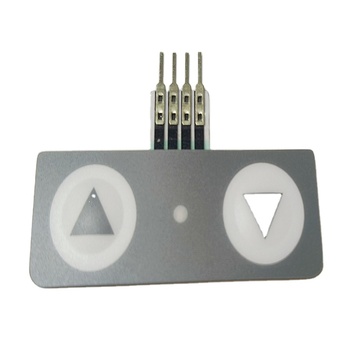

Metal Dome Tactile LED Membrane Switch Panel

Illuminated Metal Dome PCB Switch Panel

  • 1,000,000+ Cycle Metal Domes
  • Integrated SMD Indicator LEDs
  • Heavy Industrial Grade Build
$0.50 - $0.80 MOQ: 10 pcs
Embossed Tactile Buttons Membrane Switch for Inverters

Inverter & Controller PCB Membrane Switch

  • Embossed Pillow Keys with Snap Domes
  • Rigid Board for Pin Headers
  • Hard-Coated Anti-Glare Finish
$0.50 - $0.80 MOQ: 10 pcs
Technical Comparison

PCB Backer vs. Flexible FPC vs. Standard Silver PET Circuits

Selecting the correct base substrate ensures maximum reliability, long cycle life, and cost efficiency for your specific operating environment.

Feature / Parameter PCB Substrate (FR-4) Flexible Copper (FPC Polyimide) Silver Ink PET Film
Mechanical Rigidity High (Rigid FR-4, 0.4mm – 3.2mm) Flexible (Bends to contoured housings) Flexible (Standard flat thin film)
SMT Component Assembly Direct reflow soldering for high density SMD Soldered / Conductive epoxy bonding Conductive epoxy bonding only
Trace Density & Pitch Ultra-fine pitch, multi-layer routing Fine pitch (≤0.5mm pitch connectors) Standard pitch (2.54mm pitch common)
Connector Integration Direct soldering of latching pin headers/terminals ZIF connector tail with stiffeners Female crimp housing / ZIF tail
Operating Temperature -40°C to +125°C -40°C to +105°C -20°C to +70°C
Target Applications Inverters, Heavy Automation, Medical Panels Handheld Remotes, Wearables, Compact Avionics Home Appliances, Educational Toys, Vending
Verified Manufacturer Profile

Dongguan Ravo Electronics Co., Ltd.

Your trusted, direct-factory supplier for custom Human-Machine Interfaces (HMI) since 2003.

Located in Fenggang Town, Dongguan City, Guangdong Province, Dongguan Ravo Electronics Co., Ltd. operates a modern, 12,000 square meter plant with a peak workforce of over 300 skilled technicians and engineers. We specialize in custom membrane switches, PCB control boards, PET graphic overlays, flexible circuit boards, aluminum plates, copper panels, and silicone keypads. Our engineering team delivers a ≤2-hour response rate with 98.59% customer satisfaction across Europe, North America, and Asia.

2003 Year Established
12,000 m² Plant Area
≤2 Hours Average Response Time
98.59% Buyer Satisfaction Rate

Audited & Trusted by OEM Industry Leaders Global Supply Chains:

LINAK · FLEXTRONICS · LG · CASIO · EARLY LIGHT

On-Site Factory Facilities & Production Inspection

Ravo Facility Overview
Precision Printing Line
SMT Component Mounting Station
100% Electrical Testing
Lamination Workshop
Cleanroom Assembly Area
Quality Control Inspection
Export Packaging
Engineering Insights

Frequently Asked Questions Regarding PCB Membrane Switches

Essential guidance for purchasing agents and hardware engineers designing HMI panels.

What are the primary benefits of using a rigid FR-4 PCB backer?

A PCB backer serves as both the circuit matrix and a structural mounting plate. It eliminates panel flexure, supports direct soldering of SMD components (LEDs, resistors, ICs), and allows latching PCB headers to be attached securely.

What surface treatments and graphic overlay options are supported?

We print overlay front foils on Autotex PET or Lexan Polycarbonate in glossy, matte, textured, or hard-coated scratch-resistant finishes. Embossing options include pillow, rim, or dome embossing aligned with tactile metal domes.

How do you test PCB membrane switch assemblies prior to shipment?

Every single batch undergoes 100% automated test verification for circuit continuity, insulation resistance, LED function, actuation force sampling, and dimensional precision before anti-static export packaging.

What files are required to obtain a fast quote and DFM review?

Please provide your 2D outline drawings (DXF, DWG, or PDF), Gerber files for the PCB layer (if custom designed), artwork files with Pantone colors, and your expected target volume. Our engineering team reviews all files in ≤2 hours.

Need Custom PCB Membrane Switch Engineering Assistance?

Upload your CAD drawings or design specs. Our engineers will provide DFM feedback and a competitive direct-factory quote.

Get a Quote
