Factory Direct Tactile Membrane Keypad with Embossed Buttons & Metal Dome
Custom Industrial & Medical Tactile Switches
Showing 16 Verified Designs for OEM / ODM Projects
OEM Build

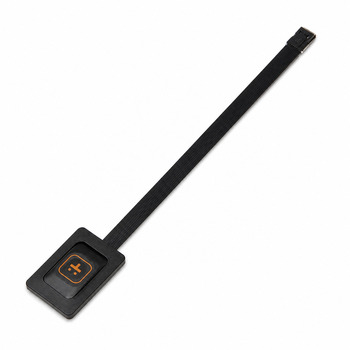

Custom Industrial Membrane Switch Handle Sensor with Durable Cross-Key Base
IP67
Custom Industrial Waterproof Membrane Switch for Control Panels
Verified

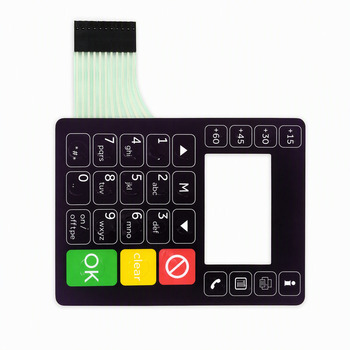

Heavy-Duty Tactile Membrane Switch Panel with Rapid Turnaround
Integrated

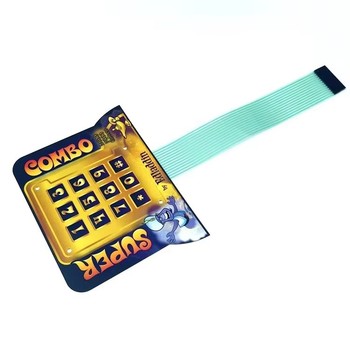

Custom Membrane Switch & Membrane Panel with Silicone Integration
Certified

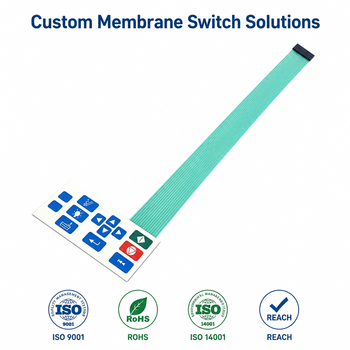

Medical-Grade Tactile Keypad with ISO9001 and RoHS Compliance
Sensor

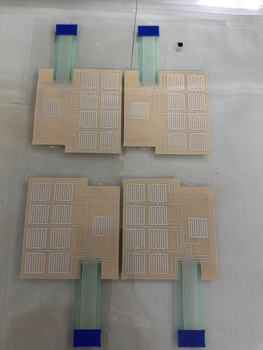

20mm Square Thin Film Pressure Force Sensor Analog PET Series
Remote

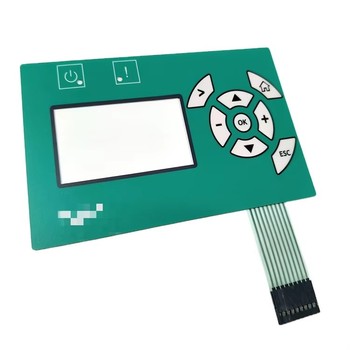

Custom Membrane Keypad Switch with Connector for Remote Controllers
Controller

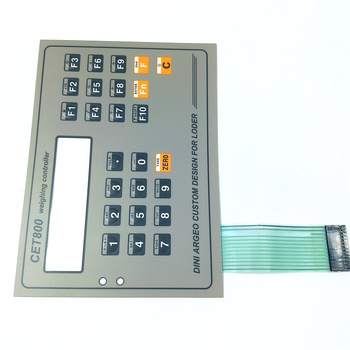

Custom Push Button Membrane Switch with Integrated Connector
Digital

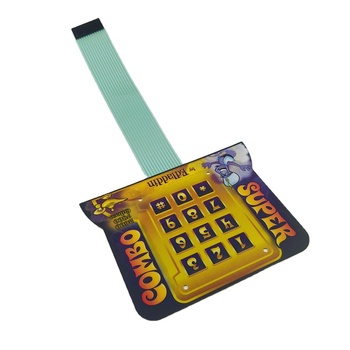

Custom Digital 3D Printing Membrane Keypad Switch for Equipment
Economy

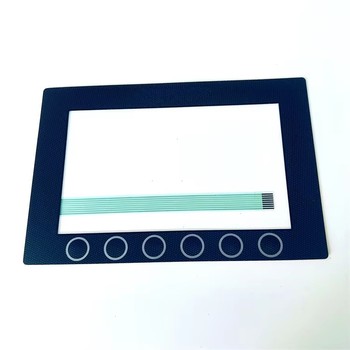

Customized PET Membrane Keypad Silkscreen Print Membrane Switch
Quick Turn

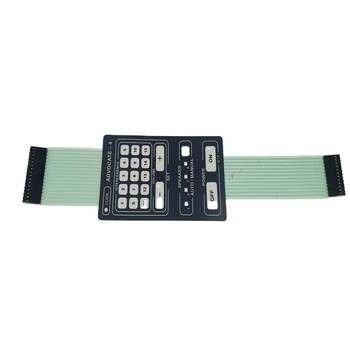

Durable Quick Sampling Membrane Switch with Silver Ink Circuit
Medical / HMI

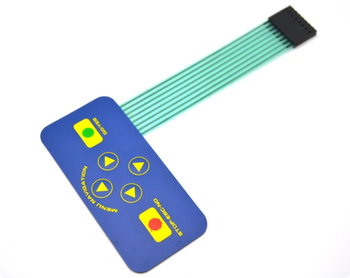

Tactile Plastic Dome & PCB Hybrid Membrane Keyboard
Metal Front

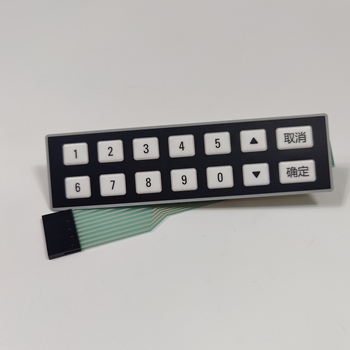

IP67/IP65 Aluminum Electronic Panel Embossed Membrane Keyboard Switch
Backlit

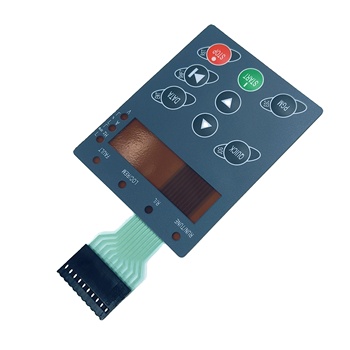

Custom Push Button Membrane Keypads with LED Backlit
Overlay

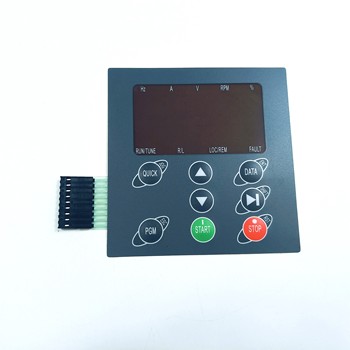

Custom Graphic Overlay Tactile Membrane Keypad for Controllers
Engineering Specifications
Tactile Membrane Switch Technical Parameter Standards
Comprehensive engineering reference for mechanical, electrical, and environmental performance verified across all custom production runs.
| Parameter | Specification / Standard | Engineering Notes |
|---|---|---|
| Operating Voltage | ≤ 50V DC | Typically 5V - 24V DC logic circuits |
| Operating Current | ≤ 100mA DC | Suitable for micro-controller inputs |
| Contact Resistance | < 100 Ω (dependent on trace length) | Low-resistance printed silver or copper FPC |
| Insulation Resistance | ≥ 100 MΩ @ 100V DC | High dielectric spacer and insulation layers |
| Tactile Feedback Actuation Force | 200g – 500g (±30g) | Selected based on dome diameter and operator glove use |
| Key Travel Distance | 0.4mm – 0.8mm | Clear snap feel with distinct sensory confirmation |
| Mechanical Switch Life | > 1,000,000 to 5,000,000 Actuations | Stainless-steel dome grade rated up to 5M cycles |
| Operating Temperature | -20°C to +70°C (Extended: -40°C to +85°C) | Engineered with automotive-grade polyester substrates |
| Storage Temperature | -40°C to +85°C | Resistant to thermal shocks and high humidity |
| Environmental Sealing | IP65, IP67 (NEMA 4 / 4X equivalent) | Achieved via continuous perimeter seals & 3M 9448A / 467MP |
| Graphic Overlay Material | Autotex PET / Lexan PC / PMMA (0.125mm – 0.25mm) | Textured, anti-glare, chemical-resistant, anti-microbial |
| Connection Methods | 2.54mm / 1.0mm Crimpflex, ZIF compatible tail, solder pins | Tail reinforcement stiffeners included standard |
Why Global OEMs Choose Ravo
Factory Strength, Verified Credentials & Manufacturing Excellence
Over two decades of dedication to human-machine interface development, delivering robust and reliable switches worldwide.
On-Site Verified Manufacturer
Founded in 2003, Dongguan Ravo Electronics Co., Ltd. operates an owned production facility exceeding 12,000 square meters in Fenggang Town, Dongguan, with full in-house screen printing, die-cutting, embossing, and automated testing capabilities.
ISO9001 & RoHS Certified Quality
Every single batch undergoes 100% electrical continuity and insulation checks, alongside rigorous mechanical actuation force tests. All films, conductive inks, and adhesives strictly comply with RoHS and REACH environmental regulations.
≤2h Fast Engineering Response
Our dedicated bilingual HMI engineers assess customer drawings, provide complete DFM optimization, and calculate accurate quotes within two hours during business hours. Prototyping starts from just 1 piece.
Trusted Interface Partner for Industry Leaders Globally
LINAK FLEXTRONICS LG CASIO EARLY LIGHT
Procurement FAQ
Frequently Asked Questions on Custom Tactile Switches
Clear answers to streamline your evaluation, prototyping, and volume ordering processes.
What is the key advantage of stainless steel metal domes?
Stainless steel metal domes offer a definite, crisp tactile sensation with an audible snap that confirms contact closure to the operator. They also deliver an exceptionally long operating lifespan exceeding 1 to 5 million cycles, making them the standard choice for medical instruments, industrial controls, and avionics.
Can you create blind-touch keys for operators wearing gloves?
Yes. We combine rim embossing, pillow embossing, or spherical dome embossing on the polyester graphic overlay with higher-force metal domes (350g to 500g). This allows operators wearing thick gloves to feel the button location and receive positive sensory confirmation upon actuation.
How do you ensure switches survive outdoor moisture and washdowns?
We implement a continuous outer adhesive gasket (typically 3M 467MP or 3M 9448A) that completely encircles the active switch matrix and tail routing. Vent paths are either internal to prevent outside air intake or protected with breathable hydrophobic membranes, achieving IP65 to IP67 sealing ratings.
What files are required to get an exact quotation and DFM review?
Please provide your 2D mechanical outlines (DXF, DWG, or PDF) detailing dimensions, key centers, tail exit, and connector pinout. For graphic artwork, vector files (Adobe Illustrator .AI or PDF) with designated Pantone or RAL color codes ensure rapid color matching and quotation within 2 hours.
Ready to Discuss Your Custom Tactile Switch Design?
Connect with our technical engineering team for real-time DFM evaluation, custom material stack recommendations, and fast prototype sampling.
