JAHigh-Reliability Flexible Printed Circuit (FPC) Keypads
Dongguan Ravo Electronics Co., Ltd. manufactures industrial-grade FPC membrane switches engineered for mission-critical applications across medical equipment, industrial controllers, automotive systems, and outdoor electronics. Utilizing high-temperature polyimide (PI) substrates with etched copper traces, our flexible printed circuit keypads allow ultra-fine trace pitch, soldered SMT LED components, and superior mechanical durability.
Supported by a 12,000 m² clean production facility in Dongguan and a technical team of over 300 specialists, we deliver end-to-end design verification (DFM), prototype manufacturing from 1 piece, and zero-defect mass production.
Direct Factory Performance
Featured FPC Membrane Switch Configurations
Explore our recent manufacturing builds. Every specification—layer stackup, actuation force, LED integration, tactile domes, graphic overlays, and tail connectors—is customized according to your engineering drawings.

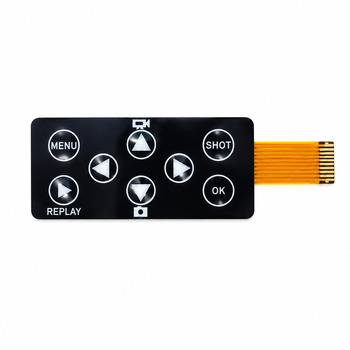

Camera Button Matrix Keypad with Tactile Metal Dome
Medical Grade FPC Membrane Switch for Handheld Remotes
Velvet-Matte Polycarbonate FPC Panel with Integrated LEDs

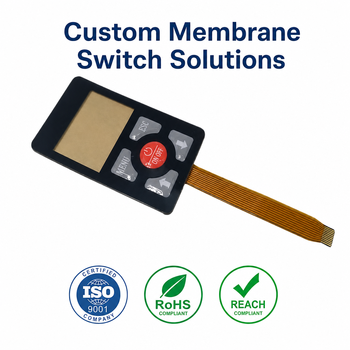

High Temperature Resistant FPC Circuit Panel for Industrial Systems

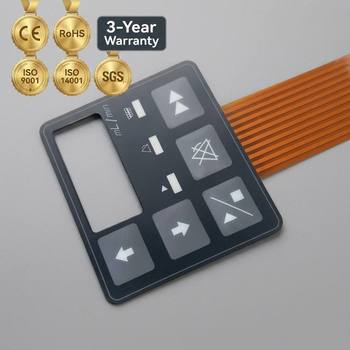

UV-Resistant PET Graphic Overlay FPC Keypad for Medical Devices

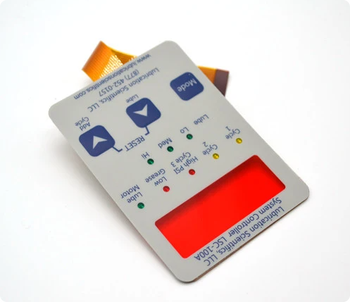

IP67 Waterproof Tactile Metal Dome FPC Switch Panel

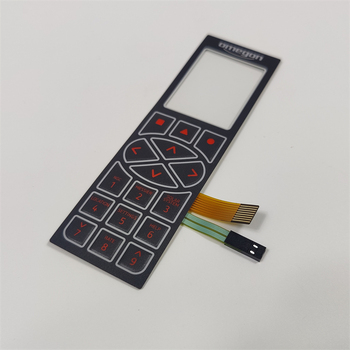

Custom Electronic Touch Overlay with Polyimide Copper FPC Circuit

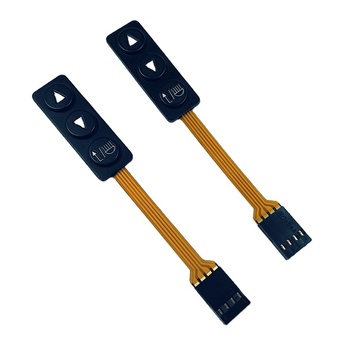

Durable FPC Circuit Keypad with SMT ZIF Connector Tail
Why Choose FPC Substrates for Membrane Switches?
A technical guide provided by Dongguan Ravo Electronics Co., Ltd. engineering department to assist global OEM buyers in selecting optimal circuit architecture.
FPC Circuit Membrane Switch Recommended for High-Reliability
Substrate: Polyimide (PI) film with etched copper traces (1oz / 2oz copper).
- Soldering SMT Components: Direct reflow soldering of SMD LEDs, resistors, diodes, and ZIF connectors without silver migration risk.
- Trace Density: Ultra-fine line widths down to 0.15 mm / pitch 0.5 mm for dense control boards.
- Thermal Resistance: Superior thermal stability (-40°C to +125°C), suitable for high-temp industrial environments.
- Mechanical Bending: Exceptional flex cycle life without trace cracking or impedance change.
Silver Ink PET Membrane Switch Standard Cost-Effective
Substrate: Polyester (PET) film with screen-printed conductive silver paste.
- SMD Components: Requires conductive silver epoxy bonding (higher contact resistance than soldered copper).
- Trace Density: Minimum trace width ~0.5 mm / pitch 1.27 mm or 2.54 mm.
- Thermal Resistance: Rated from -20°C to +65°C; susceptible to silver migration in humid environments.
- Applications: Consumer appliances, toys, and static flat keyboards.
| Parameter / Property | FPC (Polyimide Copper) Specification | Standard PET (Silver Paste) Specification |
|---|---|---|
| Circuit Material | Polyimide (PI) + Etched Copper Foil | Polyester (PET) + Printed Conductive Silver Paste |
| Min Line Width / Space | 0.12 mm / 0.12 mm | 0.40 mm / 0.40 mm |
| Circuit Loop Resistance | < 1 Ω (Very Low Power Loss) | 10 Ω – 100 Ω (Varies with length) |
| Operating Temperature | -40°C to +85°C (Short peak +125°C) | -20°C to +65°C |
| Component Assembly | SMT Reflow Soldered (LEDs, Diodes, Connectors) | Conductive Epoxy Bonding |
| Ingress Protection | Up to IP67 / IP68 (Sealed Perimeter) | IP65 Max |
Manufacturing Capabilities & Production Floor
Dongguan Ravo Electronics Co., Ltd. operates a integrated manufacturing plant in Fenggang Town, Dongguan City. From graphic overlay screen printing to precision die-cutting, cleanroom assembly, and 100% electrical parameter testing, every stage is strictly monitored under ISO 9001.
Company Overview & Verification
Dust-Free Silk Screen Printing
FPC Lamination & Assembly
Precision Punching & Die-Cutting
100% Electrical Inspection
Silicone Keypad Molding
Export Standard Quality Control
Export Anti-Static Packaging
Frequently Asked Questions for FPC Membrane Switch Projects
What engineering files are required to get an exact quote for a custom FPC membrane switch?
We recommend providing a 2D mechanical drawing (DXF, DWG, or PDF), Gerber files for the FPC copper circuit, vector artwork (AI, CorelDraw, or PDF with Pantone color codes), key actuation requirements (tactile metal dome size/force or non-tactile), and expected annual order quantities. Our engineering team at Dongguan Ravo Electronics Co., Ltd. will issue DFM feedback within 2 hours.
Can FPC membrane switches achieve IP67 waterproof rating for outdoor or medical applications?
Yes. By engineering a continuous outer perimeter adhesive seal (using high-tack 3M 200MP / 300LSE series adhesives), waterproof tail exits, and sealed display windows, our FPC membrane switches successfully meet IP65 to IP67 standards against liquid splash, dust, harsh chemical cleaners, and UV exposure.
What is the prototype lead time and minimum order quantity (MOQ)?
We offer rapid prototyping from 1 to 10 pieces. After drawing and artwork sign-off, samples ship in approximately 7 to 12 working days. Standard mass production MOQs start from 100 to 500 pieces depending on tooling and component complexity.
Can surface-mount components (LEDs, resistors, sensors) be soldered onto the FPC layer?
Yes. Because the base substrate is polyimide (PI) with real copper foil, components such as SMD LEDs (0603, 0805, 1206), resistors, diodes, and board-to-board ZIF connectors are soldered directly using standard SMT reflow or hand soldering techniques, ensuring permanent mechanical and electrical stability.
Ready to Start Your FPC Membrane Switch Project?
Submit your design specifications or engineering drawings to Dongguan Ravo Electronics Co., Ltd. Our engineering team reviews every stackup for manufacturability and provides formal quotation response within 2 hours.
Email: [email protected] | Rapid DFM Review & Global Shipping
